Verticutter attachment

The verticutter attachment may be fitted to any Aercore 800 machine equipped with the 25-hp Kohler® Command Series engine.

The verticutter utilizes carbide-tipped blades and may be operated to a maximum depth of 1-3/4 in. (44.5 mm) in any of the Aercore 800’s four operating gears. Soil conditions will determine whether or not maximum depth can be achieved. A 31.5-in. (80-cm) width matches the aeration width of the Aercore 800. The standard blade spacing from the factory is 1 in. (25.4 mm), but it can be increased or decreased using spacers in increments of 1/4 in. (6.4 mm).

Featuring a precise, no-tool depth adjustment, the verticutter attachment allows superintendents to operate at virtually any depth up to 1-3/4 in. (44.5 mm). A convenient handle and transport bracket allows the operator to lift the verticutter to a higher position for transporting.

The verticutter utilizes a belt drive system that engages when the coring head is lowered and disengages when the coring head is raised. By utilizing the same electrohydraulic lift/lower system currently on the Aercore 800, an operator may raise the verticutter without the engine running.

Standard tire scrapers for the verticutter eliminate any debris buildup to maintain a consistent verticutting depth.

Once installed, the versatility of the verticutter attachment allows the operator to aerate only, verticut only, or simultaneously aerate and verticut. To aerate only requires simply disengaging the verticutter belt drive, located underneath the belt drive cover. Superintendents choosing to verticut only may do so by simply disengaging the two coring head belts and securing them with the provided belt latches.

Simultaneous application in process

Completed green

For golf courses that aerate and verticut as part of the same practice, the Aercore 800 equipped with the verticutter attachment allows both aerating and verticutting operations to be performed at exactly the same time. The simultaneous operation yields time and labor savings compared to traditional methods.

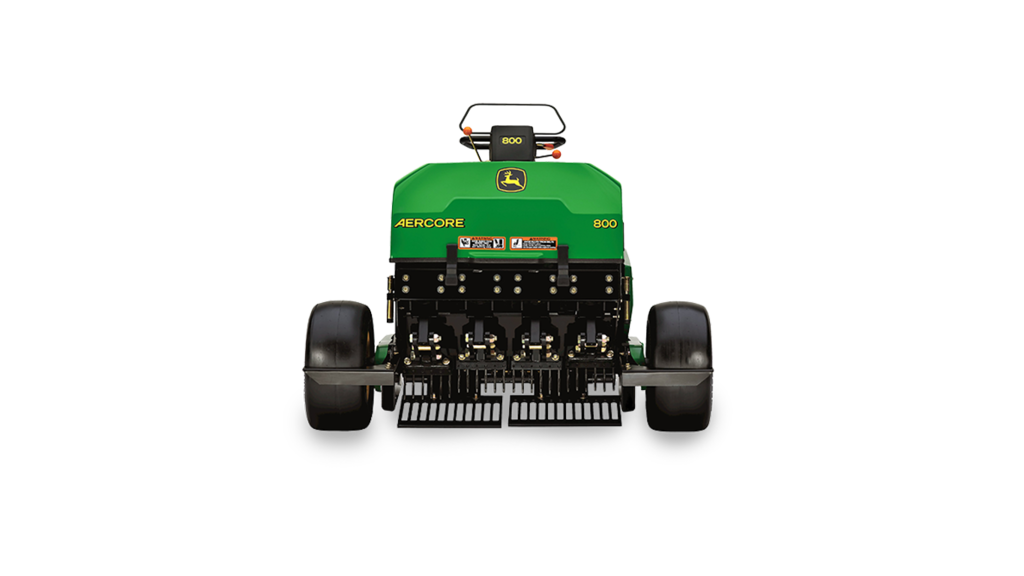

Aercore™ 800 Aerator
