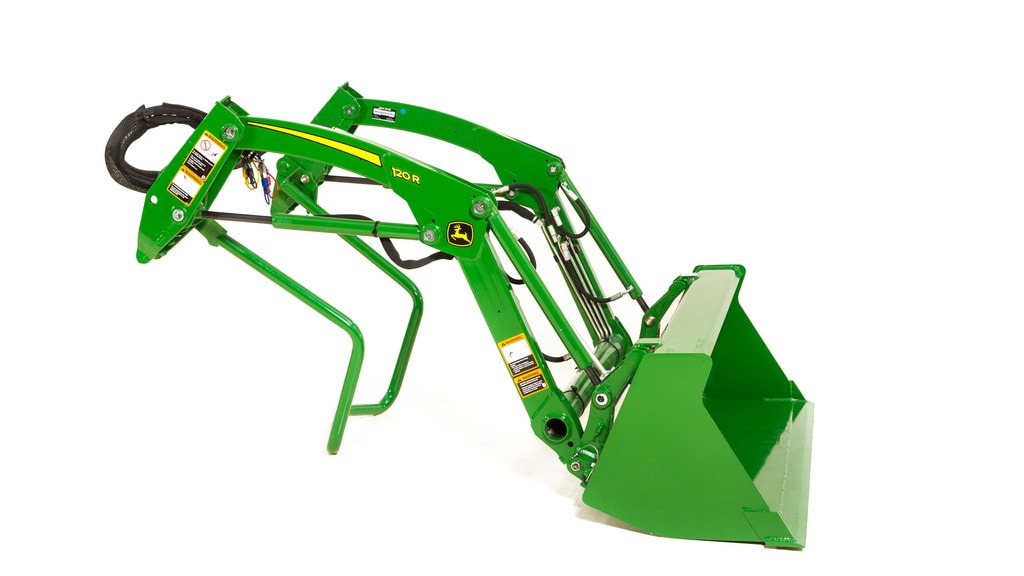

Quik-Park™ loader mounting system

The Quik-Park mounting system on the 120R Loader is designed for easy removal and mounting to and from the tractor without tools.

Just like on the former H120, the parking stand is attached to the mast. To lower it into the park position, simply move the joystick to the raise position once the latches are opened.

Mount to and from the tractor without tools

Mount to and from the tractor without tools

120E (Former D120)

Parking stands stored in the D120 torque tube

The 120E does not utilize the Quik-Park system as used on the 120R, but rather has two parking stands that are stored within the torque tube for a manual parking process.

Remove the parking stand from the torque tube area and place within the loader foot plate during the parking process (as shown).

Once the loader weight is being supported by the bucket and parking stands, manually remove the pins from the mast assembly and disconnect hydraulics.

Remove the parking pins

Back away from the loader

After installing the parking stands, removing the parking pins and disconnecting hydraulics, simply back away.

D120 Loader on the parking stands
