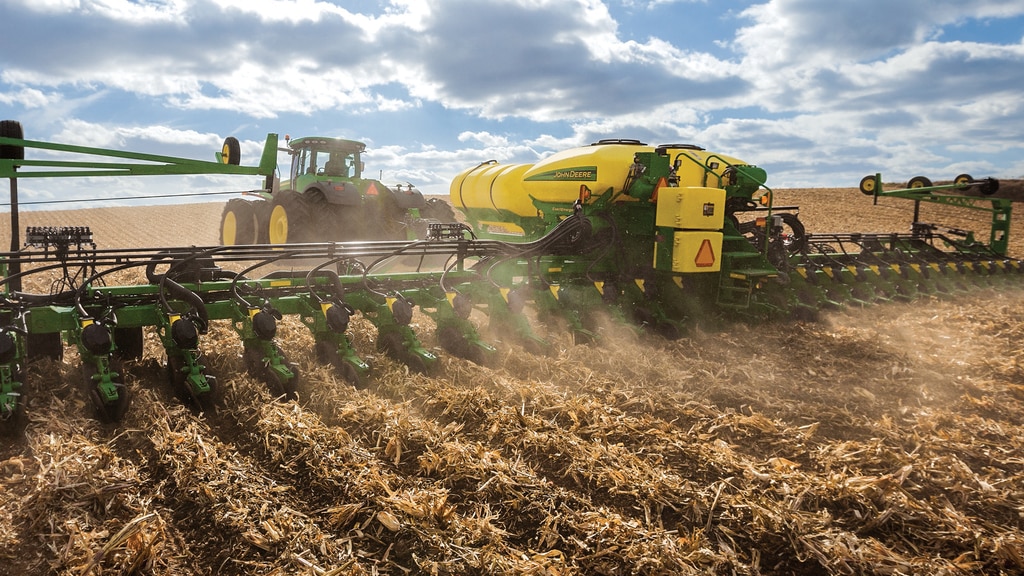

AutoTrac™ guidance steering system allows operators to use tramline management more effectively, minimizing soil compaction. Additionally, AutoTrac allows the machine operator to select from a variety of guidance modes including straight track, AB curves, adaptive curves, circle track, boundary fill, machine access, and swap track. These tracking options allow the operator to select the track best suited for the field and conditions reducing the number of passes needed to cover the field.

Curve track

Curve track

The curve track mode helps operators by automatically steering curved guidance lines on terrain that does not allow for straight track to be used (rolling hills or contours).

When running with curve track, keep in mind these basic principles:

Straight track is more accurate than curve track.
A machine with an integrated AutoTrac steering kit is more accurate than a machine with the AutoTrac Universal steering kit.
Slower speeds are more accurate than faster speeds.
Gentle curves are more accurate than tight turn radius curves.

Types of curves

Simple curve		S-curve
Boxed		Racetrack
Spiral		Circle

Two different modes can be used depending on the type of curves that need to be created: adaptive curves or A/B curves.

Adaptive curve track

This track allows the operator to record a manually driven curved guidance line. Operators have the ability to record and utilize multiple adaptive curves per field. This feature is especially useful as operators maneuver around terraces or irregular, constantly changing fields. Adaptive curve mode also has the ability to connect line segments when documentation is selected as the recording source. Self-propelled forage harvester or combine operators may find this functionality useful if they need to quickly raise their header for any reason.

The curve adapts, if driven around an obstacle

The curve adapts, if driven around an obstacle

The curvature of the line changes down the field

The curvature of the line changes down the field

A/B curve track

This track allows the operator to set a curved line in a field with two end points (A and B) and will generate guidance lines parallel to the initial track in either direction.

Skip pass

The line stays the same across the field, and an operator can use skip track.

Field obstacles

Even if an operator drives around an obstacle in the field, the next pass follows the original track line.

Straight track

Subsequent passes are identical to the first pass

Subsequent passes are identical to the first pass

The straight track mode helps operators by automatically driving straight. Operators can create an initial straight line using a variety of different setup options.

Once the track has been defined, all subsequent track lines in the field are created parallel to each other at the defined track spacing distance.

Tramline management

Tramline screen

Tramline management provides the opportunity to setup and edit certain guidance lines as tramlines. Those lines will be highlighted in a separate color in the guidance screen.

Tramlines can be set and stored for each A-B line in the display. This allows the operator to properly seed and plant fields with accurate tramlines defined. This will make it easier to reduce inputs on all following field operations such as spraying.

Swap track

Swap track provides operators the ability to quickly switch guidance modes as they work through fields varying geographic conditions. Operators can easily move from straight track to any of the other tracking modes as needed. Swap track allows the operator to toggle between up to four different guidance lines within the same field. Operators can also change the track order while AutoTrac is engaged.

The circle track mode helps operators drive concentric circles in a field when a circle is set up and guidance is being used. Operators can create an initial circle using a variety of different methods. Once the initial circle has been defined, all the subsequent circles in the field are created.

Follow track mode reduces compaction

Active Implement Guidance™ uses the follow track mode

Active Implement Guidance™ uses the follow track mode

Unique to John Deere Active Implement Guidance, the follow track mode assists the driver when operating headlands or navigating around obstacles, allowing the implement to follow the tractor guidance path. This helps reduce crop damage and soil compaction.
