After the fast-rotating blades cut the crop, the intake fingers push the plants into the gatherer drums that rotate in the same direction at low speeds. Every plant is pushed into the teeth of the gathering drum. The specially designed shape of the teeth ensures that both small and large plants are conveyed in a secure way.

The new and improved intake finger design allows for the crop conveyance to start deeper into the drum to ensure plants are more securely held prior to cutting, which in turns allows for a clean cut before being guided into the machine while maintaining control of the stalk. Improving the intake area on the 400pro series headers allows for less cob and crop losses during difficult harvesting conditions. The new intake drums with the new tooth design allows for better performance in down crops.

In the machine, the plants are taken off the back of the gatherer drum by scrapers. Depending on the width of the header, they are forwarded to the cross-feed drums or immediately fed into the angled feed drums in the middle of the machine.

To provide an increase in uptime and productivity the 400pro headers also feature a new-style gathering drum. This particular gathering drum allows for the top cover to be removed separately and quickly provide better access to the intake fingers for increased serviceability and easier access for cleaning.

700Plus Series

400Pro Series

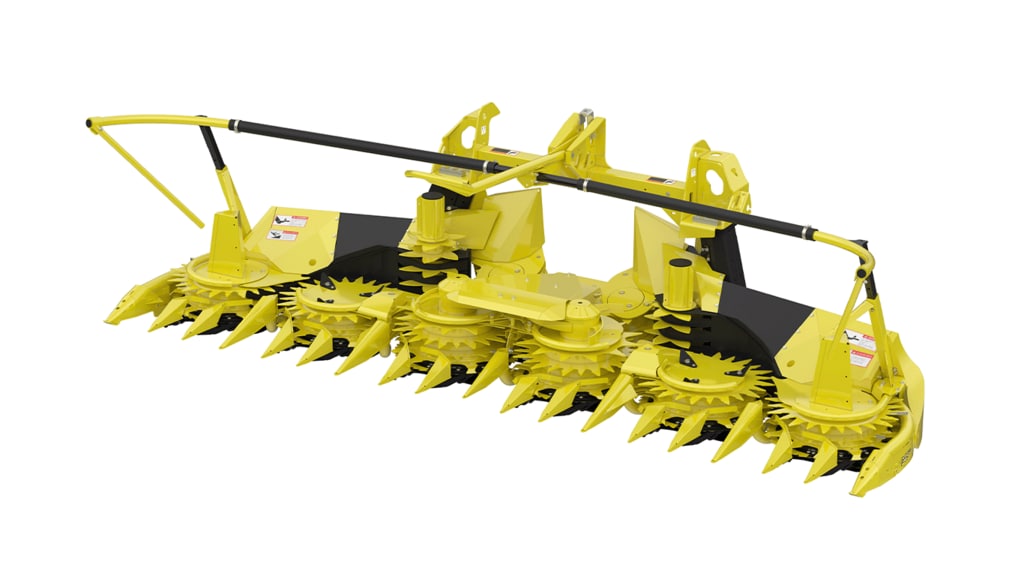

345Pro Rotary Harvesting Unit
